6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement

6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement
6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement
6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement 6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement 6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement 6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement 6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement 6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement

Gambar besar :  6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement

Detail produk:
Tempat asal: Shanghai, Tiongkok
Nama merek: Pullner
Sertifikasi: ISO45001/14001/9001
Nomor model: PLBG
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: dapat dinegosiasikan
Kemasan rincian: Kemasan Standar Ekspor
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan: 100 buah per hari
Kontak

6 Inch High Flow Filter Cartridge with Thermal Welded Coreless Design for Bag Filter Replacement

Deskripsi
Menyoroti:

Coreless 6 Inch Large Diameter Structure 6

,

All Thermal Welding No Adhesive Contamination

,

Direct Replacement For Traditional Filter Bags

PLBG Series 6 Inch High Flow Filter Cartridge
Coreless Thermal Welded Filter To Replace Filter Bags
Product Overview
PHBG Series High Flow Filter Cartridge is made of diameter 6" (152mm), single open end, port size 180mm, without inner core, inside to outside flow direction. All connection use thermal welding, no any bonding agent, wide range of chemical compatibility, can be applied to various fields. It's designed to replace the filter bag.

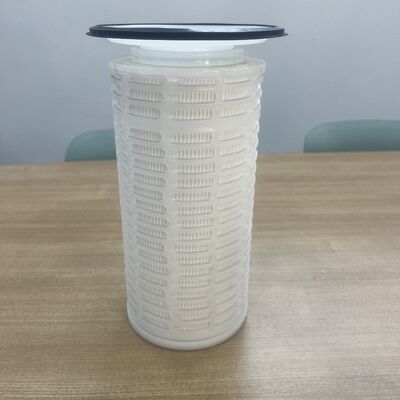

PHBG Series High Flow Filter Cartridge product image
Applications
  • General purpose: RO Pre-filtration, Seawater desalination RO pre-treatment
  • Power generation: Condensate re-circulation, Hot water recovery, Supplementary water, Coolant
  • Food and Beverage: Bottled water, High Fructose, Edible oil, Soft drinks, and milk, Potable water
  • Petrochemical: Various solvents, Ink, plating fluids, Paints and coatings, Refineries
Technical Specifications
OD 6" (152.4mm)
Port size 180mm
Length 10", 20", 30", 40" (Customized on request)
Micron 1μm, 5μm, 10μm, 20μm, 50μm, 100μm, 150μm, 200μm
Max. operating temperature Pleated PP: 82℃
Pleated glass fiber: 121℃
Max. operating differential pressure
(Inside to outside flow direction)		 Pleated PP: 3.44bar@82℃
Pleated glass fiber: 3.44bar@121℃
Suggestion pressure for filter replacement 2.5 Bar @ 20℃
Model Configuration
Model Filter Media Support/Drainage End Caps Seals Material
PP Pleated Depth Polypropylene Polypropylene Glass Fiber Reinforced Polypropylene NBR, Silicone, EPDM, FKM
GF Glass Fiber/Polyester Polyester Glass Fiber Reinforced Polypropylene NBR, Silicone, EPDM, FKM
Certifications
Filter cartridge certifications and quality standards
Packaging & Shipping
Filter cartridge packaging overview Filter cartridge shipping packaging Filter cartridge secure packaging details
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
Q: How should I place an order?
A: Please kindly click "Sent Inquiry", Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection.
