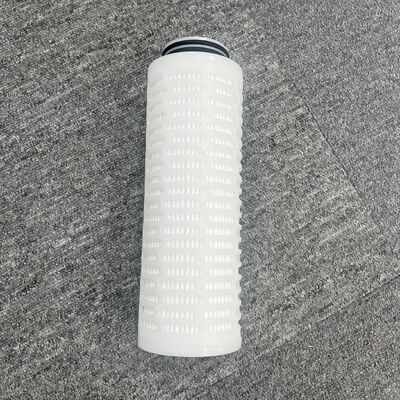

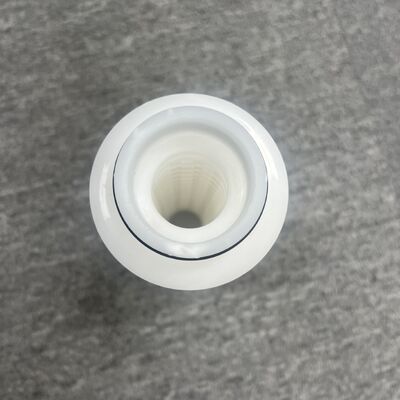

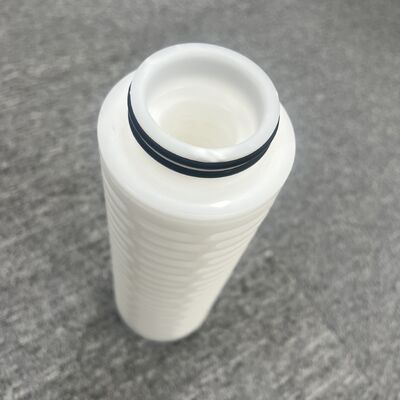

83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration

83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration
83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration
83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration

Gambar besar :  83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration

Detail produk:
Tempat asal: Shanghai, Tiongkok
Nama merek: PULLNER
Sertifikasi: ISO14001/ISO9001/ISO54001
Nomor model: Seri 83
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: dapat dinegosiasikan
Kemasan rincian: Individu dikemas dalam kotak karton setelah polybag.
Waktu pengiriman: 1 bulan
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan: 50 buah per bulan
Kontak

83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration

Deskripsi
Menyoroti:

120L/Min Ultra High Flow Rate

,

Expanded Pleated Filtration Area

,

Professional FPD Wet Process Design

High Flow 83mm Pleated Filter Cartridge, 120L/Min For FPD Flat Panel Wet Process Filtration
Product Overview

The 83 Series pleated filter cartridge is specifically engineered for wet process filtration in FPD (flat-panel display) manufacturing applications. Featuring an expanded filtration area and enhanced flow capacity, this cartridge delivers optimal performance for 5-6 generation production lines with flow requirements up to 120L/Min.

Technical Specifications
Filter Media PFL: PTFE (Hydrophobicity)
PFLH: PTFE (Hydrophilic)
EPS: PES
HPPV: PP
Cage/Core/End Caps Polypropylene (PP)
Seal Material EPDM, Silicone, V
Filtration Rating 0.05μm, 0.1μm, 0.22μm, 0.45μm, 1μm, 1.2μm, 3μm, 5μm, 10μm
Maximum Operating Temperature 80℃
Maximum Positive Difference Pressure 4bar/21℃
2.4bar/80℃
Biological Safety
  • Every 10 inches of dissolved matter: Less than 30mg
  • Endotoxin: 0.25EU/ml
Product Series Configuration
Series Micron Length End Cap Type Seal Material
83 PFL: 0020=0.2μm, 0050=0.5μm, 0100=1.0μm, 0300=3.0μm, 0500=5.0μm, 1000=10μm 10" C5=222/Flat
C6=226/Flat		 E=EPDM
S=Silicone
V=V
PFLH: 0020=0.2μm, 0050=0.5μm, 0100=1.0μm, 0300=3.0μm, 0500=5.0μm, 1000=10μm
EPS: 0005=0.05μm, 0010=0.1μm, 0022=0.22μm, 0045=0.45μm, 0065=0.65μm, 0120=1.2μm, 2000=20μm, 4000=40μm, 7000=70μm, 9000=90μm
HPPV: 0050=0.5μm, 0100=1.0μm, 0150=1.5μm, 0300=3.0μm, 0500=5.0μm, 1000=10μm
Company Profile
Shanghai Pullner Filtration Technology Company Overview

Shanghai Pullner Filtration Technology Co., LTD.

Established: 2013

Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.

Global Presence

China Domestic Offices: Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China

Global Branches: UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)

83 Series Big Diameter Pleated Filter Cartridge
Certifications
83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 2



83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 3
83mm High Flow 120L/Min Pleated Filter Cartridge for FPD Flat Panel Display Wet Process Filtration 4
Frequently Asked Questions
Q1: What is the brand name of this product?
A: The brand name is PULLNER.
Q2: What is the model number of this product?
A: The model number is 83 Series.
Q3: Where is this product manufactured?
A: This product is made in China.
