20 Inches PRS Series Capsule Filter for Ultra-High Flow Lithium Battery Slurry Filtration

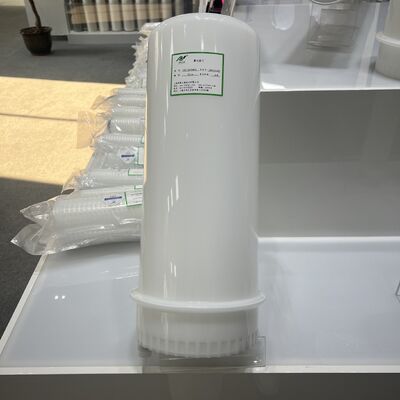

Gambar besar : 20 Inches PRS Series Capsule Filter for Ultra-High Flow Lithium Battery Slurry Filtration

Detail produk:

Tempat asal:	Shanghai, Tiongkok
Nama merek:	PULLNER
Sertifikasi:	ISO45001/14001/9001
Nomor model:	PRS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kotak karton setelah kantong plastik
Waktu pengiriman:	10-15 hari kerja
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan:	100 pcs per minggu

Kontak

20 Inches PRS Series Capsule Filter for Ultra-High Flow Lithium Battery Slurry Filtration

Deskripsi

Menyoroti:

7 Built-in Wound Filter Cores

Ultra High Flow For High-Speed Coating

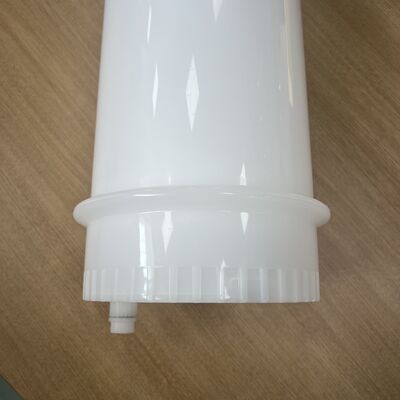

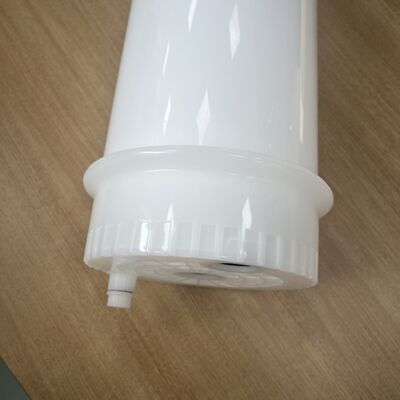

Bottom Drain Outlet For Liquid Recycling

PRS series filter cartridge

The PRS series integrated filter cartridge is engineered for ultra-high flow applications, making it ideal for high-speed coating production lines. This advanced design incorporates seven wound filter cores that significantly extend service life and reduce replacement frequency, meeting the rigorous demands of high-speed coating processes. The bottom features a specialized drain outlet for efficient liquid recovery and reuse.

Application Fields
Slurry filtration
Coating liquid filtration
Colloidal product filtration
Filtration of liquids containing toxic or hazardous substances

Product Model	PRS
Filter Cartridge Length	10inches,20inches
Outer Diameter	250mm
Enclosure Material	PP
Media Material	PP
Exhaust valve thread model	1/4" NPT
Design pressure	0.8Mpa
Maximum working pressure differential	0.4Mpa@20℃
Highest working temperature	80℃

Series	Length	Micron		O-ring
PRS	10=10" 20=20''	0500=5μm 1000=10μm 1500=15μm 3000=30μm 5000=50μm 7500=75μm	100H=100μm 120H=120μm 150H=150μm 200H=200μm 250H=250μm 300H=300μm	E=EPDM

Certifications

FAQ

Q1: Who is the manufacturer and brand of the filter cartridges?
A1: Shanghai Pullner Filtration Technology Co., Ltd.

Q2: Can you provide samples?
A2: We offer 1–2 free samples. Buyers only need to cover the shipping cost.

Q3: Is the filtration accuracy nominal or absolute?
A3: Our standard products use nominal rating. However, we can customize absolute-rated filters based on your application requirements.

Q4: Which brands can your filters replace?
A4: Our filters can be used as replacements for major brands such as 3M, PARKER, GARVER, and others.
