10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration

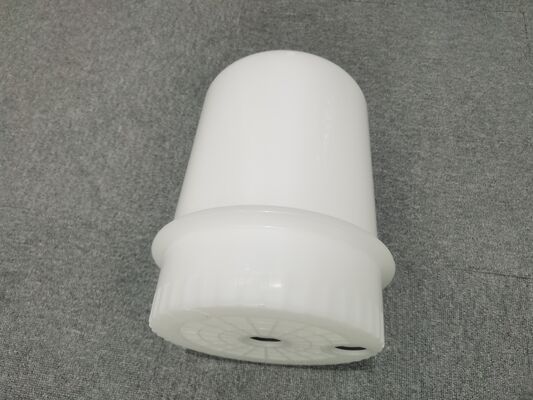

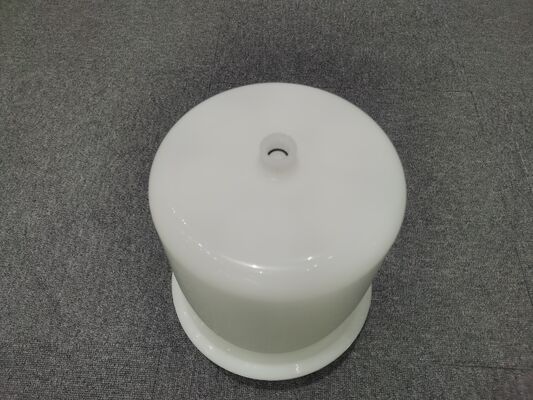

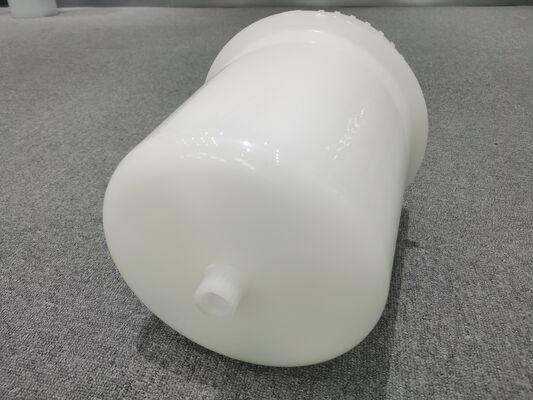

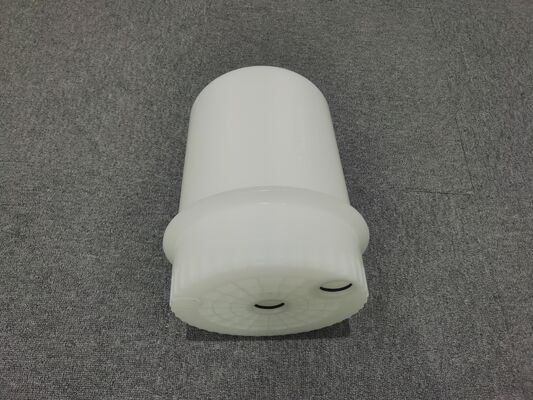

Gambar besar : 10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration

Detail produk:

Tempat asal:	Shanghai, Tiongkok
Nama merek:	Pullner
Sertifikasi:	ISO9001,ISO14001
Nomor model:	PRS

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kemasan Standar Ekspor
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan:	100 buah/hari

Kontak

10 inches PRS Series Capsule Filter for Lithium Battery Slurry Filtration

Deskripsi

Menyoroti:

10 inch PRS lithium battery filter

capsule filter for battery slurry

PRS series new energy filter

PRS Series Capsule Filter for Lithium Battery Slurry Filtration

Product Introduction

The PRS series integrated filter cartridge is engineered for ultra-high flow applications, making it ideal for high-speed coating production lines. This advanced design incorporates seven wound filter cores that significantly extend service life and reduce replacement frequency, meeting the rigorous demands of high-speed coating processes. The bottom features a specialized drain outlet for efficient liquid recovery and reuse.

Application Fields

Slurry filtration
Coating liquid filtration
Colloidal product filtration
Filtration of liquids containing toxic or hazardous substances

Flow Rate Curve and Product Structure

Product Specifications

Model	PRS
Length	378mm
OD	250mm
Media Material	PP
Material of Outer Core	PP
Thread type of the vent valve	1/4" NPT
Design Pressure	0.8Mpa
Maximum Operating Pressure	0.5Mpa@20℃
Maximum Operating Temperature	80℃

Order Information

PRS --10-- 100H-- E

Series	Length	Micron	O-ring
PRS	10=10"	0500=5μm 1000=10μm 1500=15μm 3000=30μm 5000=50μm 7500=75μm	100H=100μm 120H=120μm 150H=150μm 200H=200μm 250H=250μm 300H=300μm	E=EPDM

Frequently Asked Questions

Q1: Who is the manufacturer and brand of the filter cartridges?

A1: Shanghai Pullner Filtration Technology Co., Ltd.

Q2: Can you provide samples?

A2: We offer 1-2 free samples. Buyers only need to cover the shipping cost.

Q3: What is the delivery time?

A3: Delivery time is usually within 5-10 working days depending on the order quantity.

Product Name	Daily Production Capacity
High Flow Filter Cartridge	500 pcs/day
Condensate Filter Element	200 pcs/day
Microporous Pleated Filter Cartridge	200 pcs/day
Membrane Filter Cartridge	100 pcs/day

Q4: Is the filtration accuracy nominal or absolute?

A4: Our standard products use nominal rating. However, we can customize absolute-rated filters based on your application requirements.

Q5: Which brands can your filters replace?

A5: Our filters can be used as replacements for major brands such as PALL, 3M, PARKER, GARVER, and others.

Q6: What is the minimum order quantity (MOQ)?

A6: As a manufacturer, we accept a minimum order quantity of just 1 piece.
