PTFE Membrane Filter Cartridge with 0.01um Solid Particles Interception and 99.99% Efficiency for High Flow Gas Filtration

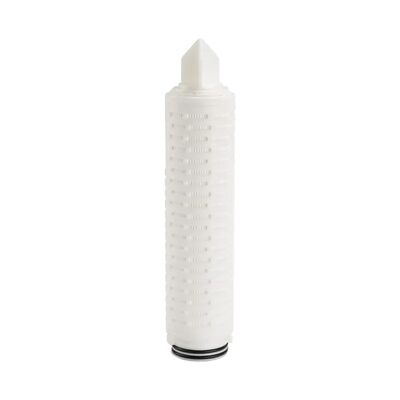

Gambar besar : PTFE Membrane Filter Cartridge with 0.01um Solid Particles Interception and 99.99% Efficiency for High Flow Gas Filtration

Detail produk:

Tempat asal:	Cina
Nama merek:	PULLNER
Sertifikasi:	FDA/ISO 9001/ISO 14001
Nomor model:	GPF

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	To be negotiated
Kemasan rincian:	Individu dikemas dalam kotak karton setelah polybag.
Waktu pengiriman:	1 bulan
Syarat-syarat pembayaran:	D/A,L/C,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan:	50pcs per hari

Kontak

PTFE Membrane Filter Cartridge with 0.01um Solid Particles Interception and 99.99% Efficiency for High Flow Gas Filtration

Deskripsi

Menyoroti:

0.01um solid particles interception PTFE Membrane Filter Cartridge

99.99% interception efficiency High Flow Filter Cartridge

Polytetrafluoroethylene (PTFE) membrane Gas Filter Cartridge

GPF Series PTFE Membrane Filter Cartridge for Gas

The GPF series filter cartridge features a Polytetrafluoroethylene (PTFE) membrane construction, delivering exceptional gas filtration performance with 99.99% interception efficiency for particles as small as 0.01μm.

High Efficiency: 99.99% particle retention at 0.01μm
Versatile Performance: Maintains filtration efficiency in both dry and humid conditions due to PTFE's natural hydrophobicity
Optimized Flow: High flow rate with minimal pressure drop
Reliable Construction: PTFE membrane ensures consistent performance for demanding gas filtration applications

99.99% 10" GPF Glass Fiber Gas Filtration Membrane Filter Cartridge

Description

Diameter:	69mm	Length:	10"
Filter Medium:	Glass Fiber	Filtration Rating:	0.003um-0.2um
MOQ:	1 Piece	Delivery Time:	1 Month
Sealing Material:	Silicone/Viton/PEP/EPDM	Max. Operating Temperature:	80℃
Max. Operating Different Pressure:	4bar/21℃	Removal Rating:	99.99%
Highlight:	GPF membrane filter cartridge , 69mm glass fiber filter cartridge , GPF microfiltration cartridge

GPF High Efficient Gas Filtration Membrane Filter Cartridge

The GPF series filter cartridge is made of Polytetrafluoroethylene (PTFE) membrane, and the interception efficiency for 0.01μm solid particles is up to 99.99%, so that GPF can meet the most stringent gas filtration. PTFE membrane has natural hydrophobicity and can achieve good filtration efficiency in dry or humid conditions. High flow rate, low pressure drop.

Material Construction

Filter Media	Ultrafine Glass fiber
Support/Drainage	Polypropylene (PP)
Cage/Core/End Caps	Core:SS304 or PP
Seal Material	EPDM, Silicone, Viton, FEP

Performance

Filtration rating

0.003μm, 0.01μm, 0.1μm, 0.2μm

Maximum Operating Temperature

50℃ (6 Months)

Maximum Operating Differential Pressure

4bar/21℃

2.4bar/80℃

Biological Safety

Every 10 inches of dissolved matter	＜30mg
Endotoxin	0.25EU/ml

Ordering Information

GPF 0001 10 C1 P

Series	Micron		Length		End Cap Type		Seal Material
GPF	00003	=0.003μm	05	=5"	C1	=226/Spear	E	=EPDM
	0001	=0.01μm	10	=10"	C3	=222/Spear	S	=Silicone
	0010	=0.1μm	20	=20"	C5	=222/Flat	V	=Viton
	0020	=0.2μm	30	=30"	C6	=226/Flat	P	=FEP
			40	=40"	C9	=DOE
