GFH Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material for High Flow Gas Filtration and >90% Dust Holding Space

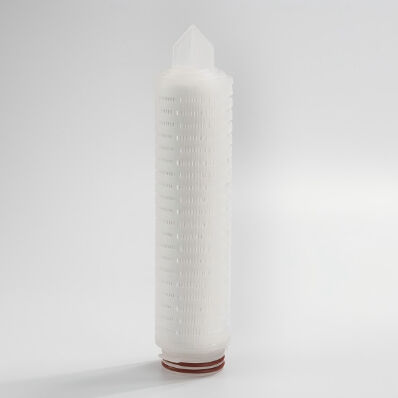

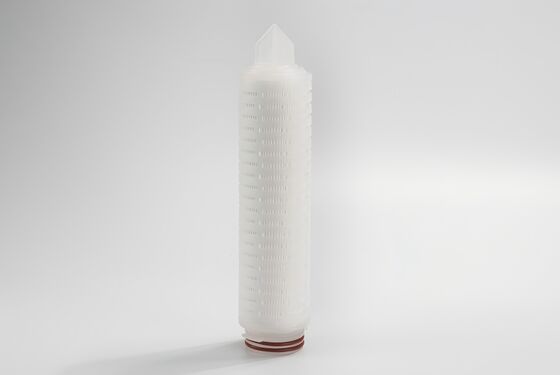

Gambar besar : GFH Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material for High Flow Gas Filtration and >90% Dust Holding Space

Detail produk:

Tempat asal:	Cina
Nama merek:	PULLNER
Sertifikasi:	FDA/ISO 9001/ISO 14001
Nomor model:	GFH

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	To be negotiated
Kemasan rincian:	Individu dikemas dalam kotak karton setelah polybag.
Waktu pengiriman:	1 bulan
Syarat-syarat pembayaran:	D/A,L/C,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan:	50 buah per hari

Kontak

GFH Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material for High Flow Gas Filtration and >90% Dust Holding Space

Deskripsi

Menyoroti:

Ultra-fine Glass Fiber Filter Cartridge

High Flow Gas Filtration Cartridge

>90% Dust Holding Filter Cartridge

GFH Series Glass Microfiber Filter Cartridge for Gas

The GFH series filter cartridge is constructed from ultra-fine glass fiber material with over 90% dust holding capacity, making it specifically designed for gas filtration applications. Its exceptional particle retention capability ensures high-efficiency gas particle removal.

Made from ultra-fine glass fiber material for superior filtration
90%+ dust holding capacity for extended service life
Specifically engineered for gas filtration applications
Excellent particle retention efficiency
Ideal for gas particle removal processes

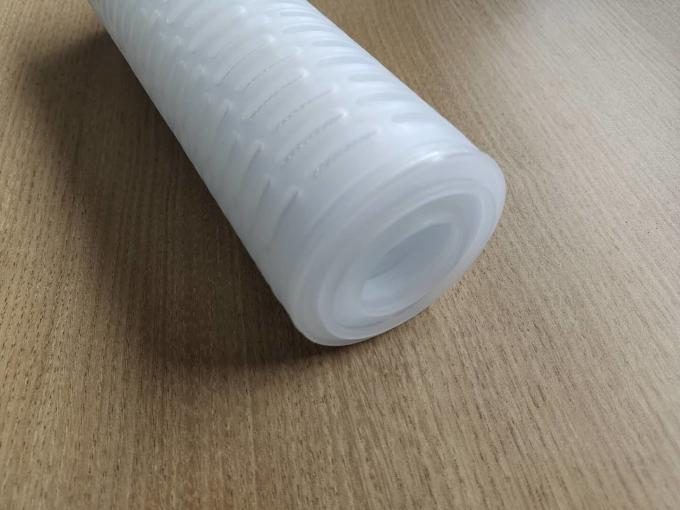

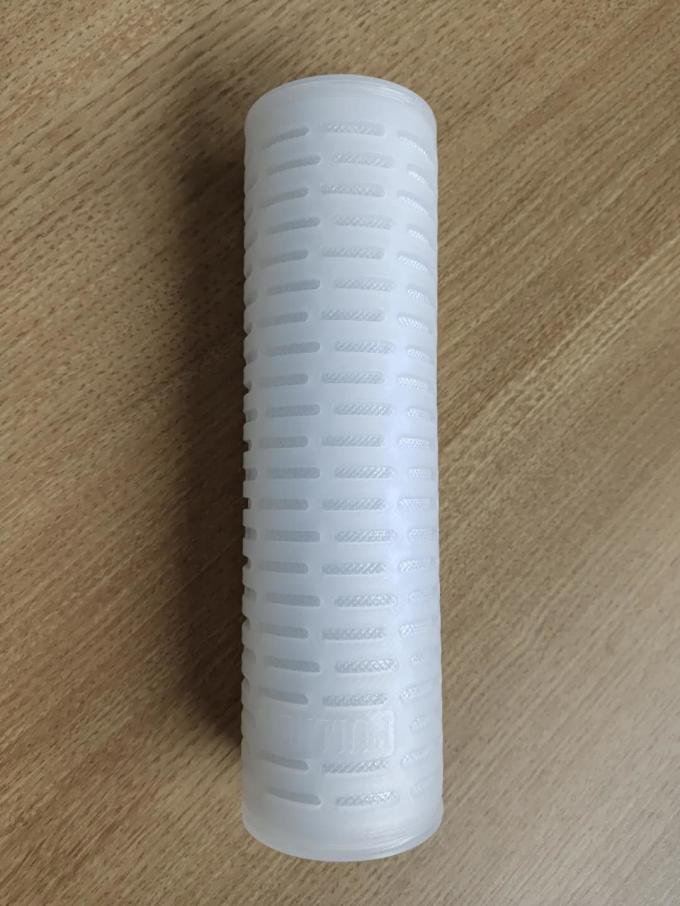

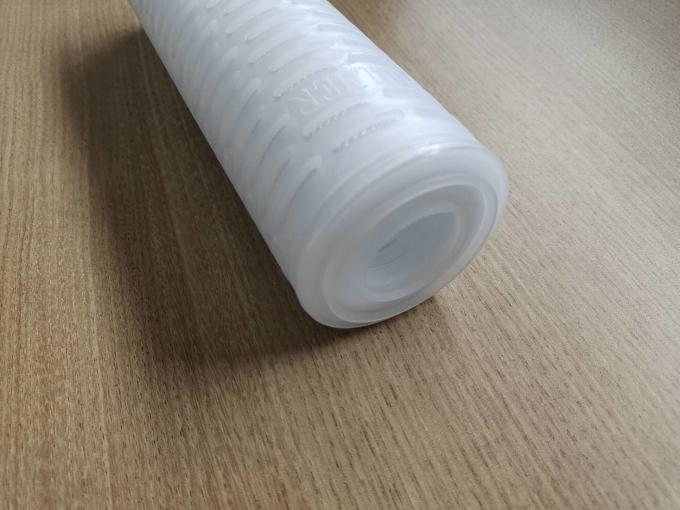

GFH 10" 50 Degree 0.3μm glass fiber Gas Filter Cartridge

Description

Diameter:	69mm	Length:	10"
Filter Medium:	PP	Filtration Rating:	0.um-5um
MOQ:	1 Piece	Delivery Time:	1 Month
Sealing Material:	Silicone/Viton/PEP/EPDM	Max. Operating Temperature:	80℃
Max. Operating Different Pressure:	4bar/21℃	Removal Rating:	90%
Highlight:	0.3μm Gas Filter Cartridge , ISO9001 Gas Filter Cartridge , GFH Glass Fiber Filter Cartridge

GFH High Dirt Content Gas Filter Glass Fiber Membrane Filter Cartridge

The GFH series filter cartridge is made of ultra-fine Glass fiber material with dust holding space more than 90%, which is especially suitable for gas filtration. The unique ability of particle retention ensures gas particle retention efficiency, is suitable for gas particle removal filtration.

Material Construction

Filter Material	Ultrafine glass fiber
Support/Drainage	Polypropylene (PP)
Cage/Core/End Caps	Core:SS304 or PP
Seal Material	EPDM, Silicone, Viton, FEP

Performance

Filtration rating

0.3μm, 0.5μm, 1μm, 3μm, 5μm

Maximum Operating Temperature

50℃(6 Months)

Maximum Operating Differential Pressure

4bar/21℃

2.4bar/80℃

Biological Safety

Every 10 inches of dissolved matter	＜30mg
Endotoxin	0.25EU/ml

Ordering Information

GFH 0002 10 C1 E

Series	Micron		Length		End Cap Type		Seal Material
GFH	0030	=0.3μm	05	=5"	C1	=226/Spear	E	=EPDM
	0050	=0.5μm	10	=10"	C3	=222/Spear	S	=Silicone
	0100	=1.0μm	20	=20"	C5	=222/Flat	V	=Viton
	0300	=3.0μm	30	=30"	C6	=226/Flat	P	=FEP
	0500	=5.0μm	40	=40"	C9	=DOE
