PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure

PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure
PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure

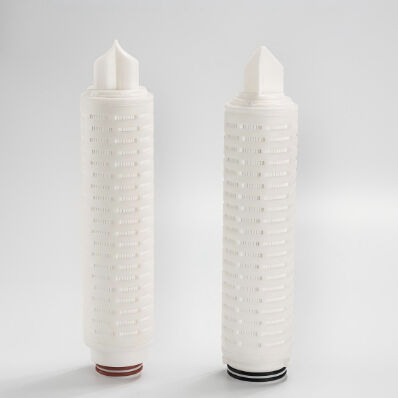

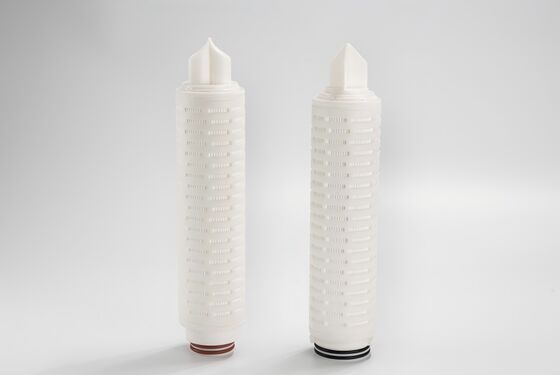

Gambar besar :  PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure

Detail produk:
Tempat asal: Cina
Nama merek: PULLNER
Sertifikasi: FDA/ISO 9001/ISO 14001
Nomor model: PBT
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: To be negotiated
Kemasan rincian: Individu dikemas dalam kotak karton setelah polybag.
Waktu pengiriman: 2 bulan
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan: 50 buah per minggu
Kontak

PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure

Deskripsi
Menyoroti:

All Polyester (PET) High Flow Filter Cartridge

,

120°C High Temperature Filter Cartridge

,

4 Bar Working Pressure High Flow Filter Cartridge

PBT Series - All Polyester (PET) Filter Cartridge
The PBT series filter cartridge is constructed entirely from Polyester (PET) material, specifically engineered for precision filtration of liquids containing aromatic hydrocarbon solvents such as benzene and toluene.
  • Made from durable Polyester (PET) material for superior chemical resistance
  • Designed for filtration of aromatic hydrocarbon solvents including benzene and toluene
  • Excellent temperature resistance - withstands 120°C for extended periods
  • Robust pressure tolerance - handles 4 bar working pressure differential
Diameter: 69mm Length: 10"
Filter Medium: PBT Filtration Rating: 0.2um-50um
MOQ: 1 Piece Delivery Time: 1 Month
Sealing Material: Silicone/Viton/PEP/EPDM Max. Operating Temperature: 120℃
Max. Operating Different Pressure: 4bar/21℃
Highlight:

PBT Membrane Filter Cartridge

,

69mm Membrane Filter Cartridge

,

222 0.45 Micron Filter Cartridge



Ordering Information

PBT                              0020                         10                                 C1                                E

Series Micron Length End Cap Type Seal Material
PBT 0020 =0.2μm 05 =5" C1 =226/Spear E =EPDM

0045 =0.45μm 10 =10" C3 =222/Spear S =Silicone

0100 =1.0μm 20 =20" C5 =222/Flat V =Viton

0500 =5.0μm 30 =30" C6 =226/Flat P =FEP

1000 =10μm 40 =40" C9 =DOE


2500 =25μm






5000 =50μm






PBT Polyester Membrane Filter Cartridge

The PBT series filter cartridge is made of all Polyester (PET) material, which can meet the precision filtration of benzene, toluene and other liquids containing aromatic hydrocarbon solvents. The Polyester material has good temperature and pressure resistance, can withstand 120℃ high temperature for a week, and 4 bar working pressure difference.


Performance

Filtration rating 0.2μm, 0.45μm, 1μm, 5μm, 10μm, 25μm, 50μm
Maximum Operating Temperature 120℃
Maximum Operating Differential Pressure

4bar/21℃

2.4bar/80℃


Material Construction

Filter media Polyester (PET)
Support/Drainage Polyester (PET)
Cage/Core/End Caps Polyester (PET)
Seal Material EPDM, Silicone, Viton, FEP



Chemical Compatibility

Benzene R CCl4 R
Xylene R Tetrahydrofuran R
Aceton(e) R Gasoline NR
Trichloroethylene R Acid NR

NR:No Recommend R:Recommend
PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure 0PBT Series All Polyester (PET) High Flow Filter Cartridge for Precision Filtration with 120°C High Temperature and 4 Bar Working Pressure 1
