PN Series Nylon Membrane Filter Cartridge with Natural Hydrophilic Nylon6/Nylon66 Membranes High Porosity and Uniform Microporous Distribution

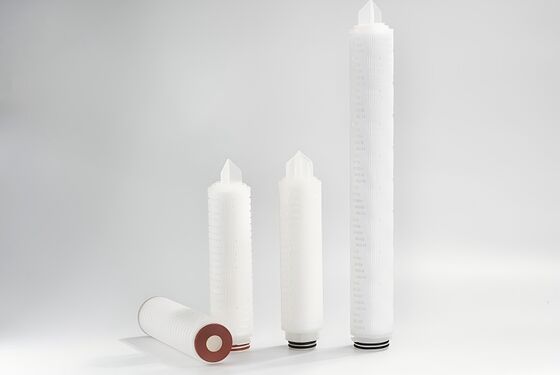

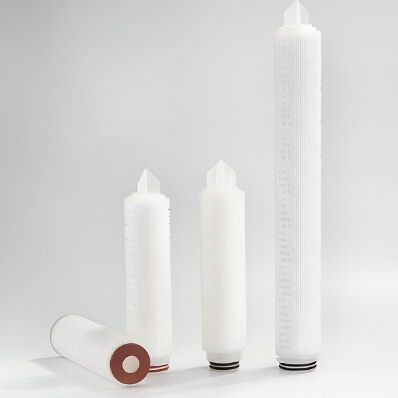

Gambar besar : PN Series Nylon Membrane Filter Cartridge with Natural Hydrophilic Nylon6/Nylon66 Membranes High Porosity and Uniform Microporous Distribution

Detail produk:

Tempat asal:	Cina
Nama merek:	PULLNER
Sertifikasi:	FDA/ISO 9001/ISO 14001
Nomor model:	Seri Nilon

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10
Harga:	To be negotiated
Kemasan rincian:	Individu dikemas dalam kotak karton setelah polybag.
Waktu pengiriman:	2 bulan
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan:	50 buah per minggu

Kontak

PN Series Nylon Membrane Filter Cartridge with Natural Hydrophilic Nylon6/Nylon66 Membranes High Porosity and Uniform Microporous Distribution

Deskripsi

Menyoroti:

nylon membrane filter cartridge

high flow filter cartridge with warranty

PN series nylon membrane filter

PN Series - Nylon Membrane Filter Cartridge

PN6/PN66 series filter cartridges feature natural hydrophilic Nylon6/Nylon66 membranes with high porosity and uniform micropore distribution. These premium filtration solutions deliver:

Large flow rate for efficient processing
Extended service life for cost-effective operation
Superior chemical compatibility
PN66 series offers double-layer membrane construction
Gradient precision configuration for enhanced filtration
Higher filtration efficiency in PN66 models

1 micron 69mm 10" PN Nylon6 Sterilization Filters Cartridge

Description

Diameter:	69mm	Length:	10"
Filter Medium:	Nylon	Filtration Rating:	1um, 2um, 5um, 10um, 15um, 20um, 50um, 70um, 100um
MOQ:	1 Piece	Delivery Time:	1 Month
Sealing Material:	Silicone/Viton/PEP/EPDM	Filter Area:	0.6-0.8㎡
Diversion Layer:	Polyester	Max. Operating Temperature:	80℃
Highlight:	69mm Nylon Filters Cartridge , 69mm Sterilization Filters Cartridge , Nylon6 membrane Cartridge

PN Nylon Sterilization Membrane Filter Cartridge

PN6/PN66 series filter cartridges are made of natural hydrophilic Nylon 6/Nylon 66 membranes. High porosity and uniform micropore distribution are the main characteristics of the filter material, with large flow rate, long use life, and superior chemical compatibility.

PND66 series filter cartridge is made of double-layer membrane, has higher filtration efficiency, gradient precision configuration, and longer service life.

Performance

Filtration Rating

0.1μm, 0.22μm, 0.45μm, 1.2μm

Maximum Operating Temperature

80℃

Maximum Operating Differential Pressure

4bar/21℃

2.4bar/80℃

Material Construction

Filter Media	PFL:PTFE(Hydrophobicity) PFLH:PTFE(Hydrophilic)
Support/Drainage	Polypropylene
Cage/Core/End Caps	Polypropylene
Seal Material	EPDM, Silicone, Viton, FEP

Chemical Compatibility

Benzene	R	CCl₄	R
Xylene	R	Tetrahydrofuran	R
Aceton-e	R	Gasoline	NR
Trichloroethylene	R	Acid	NR

NR:No Recommend R:Recommend

Ordering Information

PN66 0010 10 C1 E

Series	Micron		Length		End Cap Type		Seal Material
PN6	0010	=0.1μm	05	=5"	C1	=226/Spear	E	=EPDM
PN66	0022	=0.22μm	10	=10"	C3	=222/Spear	S	=Silicone
	0045	=0.45μm	20	=20"	C5	=222/Flat	V	=Viton
	0120	=1.2μm	30	=30"	C6	=226/Flat	P	=FEP
			40	=40"	C9	=DOE
PND66	1010	=0.1+0.1μm
	2222	=0.22+0.22μm
	4522	=0.45+0.22μm
	4545	=0.45+0.45μm
